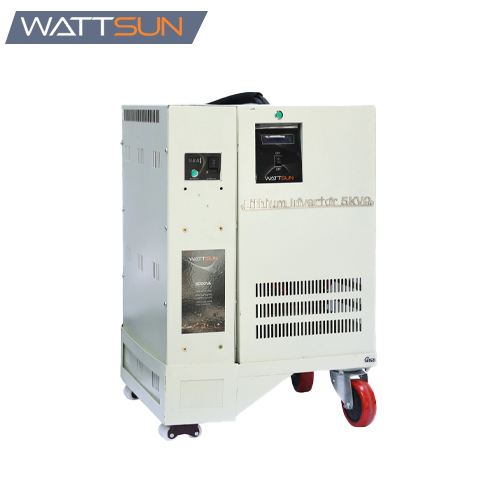

5KVA UPS Portable Solar Inverter with Inbuilt 200ah lithium battery UPS-5000W

Product Information

Battery

Cell Chemistry : LiFePo4 (LFP)

Cell Type : Blade Cell 3.2V-200Ah

Nominal Battery Voltage : Nominal Battery Voltage

Cell Configuration : 16S

Lithium Battery Capacity : 51.2V-200Ah(C) 10.24 KWh & Capacity ©

Life Cycles : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing

BMS (Battery Management System) : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing

Shelf Life : Charge Every  3 - 6 Months

AC 230 Volt Output (Invertor AC Output Power)​

Maximum AC Output Power : 5000 VA

Rated Voltage & Type : AC - 230 V, 50Hz, Pure Sine Wave

THD : < 3% (Full R Load)

Power Factor : 0.8

Rated Current : 17.3 Amps

Over Load : 110% < Load <120% @ 40 Sec 120% < Load <150% @ 4 Sec

Power Less (No Load & Turned- Off) : < 10W

AC Output Back time @ 70% of rated load (VA) : ≥ 5 Hours

Max. Efficiency (>70% Load) : 85%

AC Output Socket (For Load Connection) : AC Output Socket (For Load Connection)

Control Panel / Charging Input & Other Standard Features​

Battery Level / Capacity Indicators : Via LCD Display, Battery Switch On & Inverter Switch Off Position

Function Indicators : Fault Short Circuit Etc. / AC Output Volt / Mains Charging Amps / Load Percentage, Battery Voltage, Mains Voltage, Temprature, Overload,  UPS / Inverter Mode

Over Load Buzzer : Yes (Beeps, at the Time of Overloadin)

Mode Selection - (UPS / Inverter) : UPS :-≤ 10 ms (Working Range 190V - 265V) Inverter :≥ 20 ms (Working Range 120V - 275V)

Mains Overload Protection (NFB) : Yes (26 Amps)

Inverter Bypass : Yes (By Rotory Switch)

AC Inbuilt Charger (Charging From Grid Power) (AC input 120V to 275V) : External 32 Amps EU type AC Socket and Plug Provided for Grid Connection Chraging Rate 20 Amps Charging Time > 10 Hours

Solar Panel Connection / Compatibility : Yes, 2 Pin Input Metal Socket Provided on Control Panel Recommended Minimum Solar Panel : 220Watt - 23V * 3Series

Fast Charging Portable Petrol Engine Charger Himalayan Model : BC-5080A : 50V - 80 Amps (4000 Watt Maximum ) Charging time  Approx 2.5 Hr for 80% Charging

Costar Wheels : Yes

Heat Disipation : Twin AC Cooling Fan

IP Rate : IP 55 Protected from Water Spary < 15˚From Vertical

Working Condition

Charge Temperature : 0˚C ~ 45˚C

Operating Usage Temp. : -10˚C ~ 40˚C

Operation Storage Humidity : 5% ~ 90%

Warranty : 5 Year on Battery  & 1 Year for Complete Product  (Solar Power Station)

Package Contents : 1* UPS-5000W Lithium Inverter , 1* User Manual , 1 Set Solar Pannel 220Watt - 23V * 3Series  (Optional)
