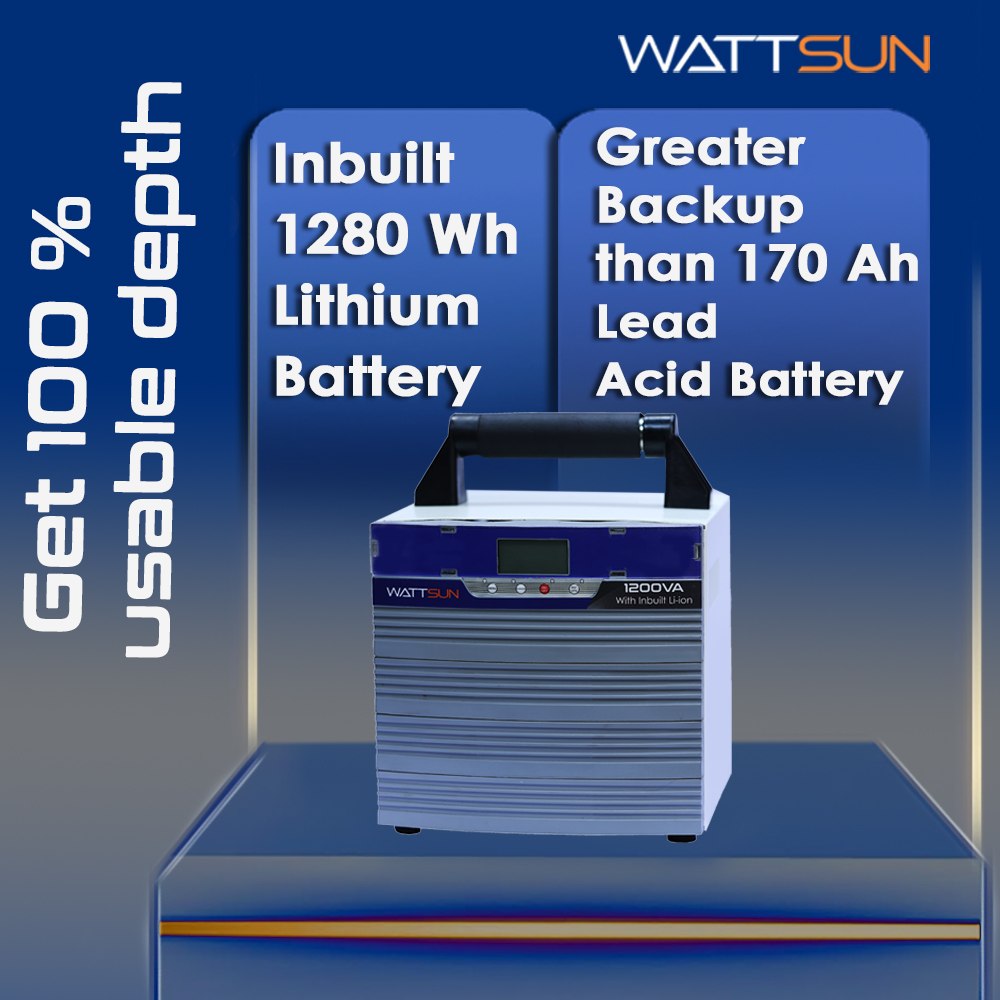

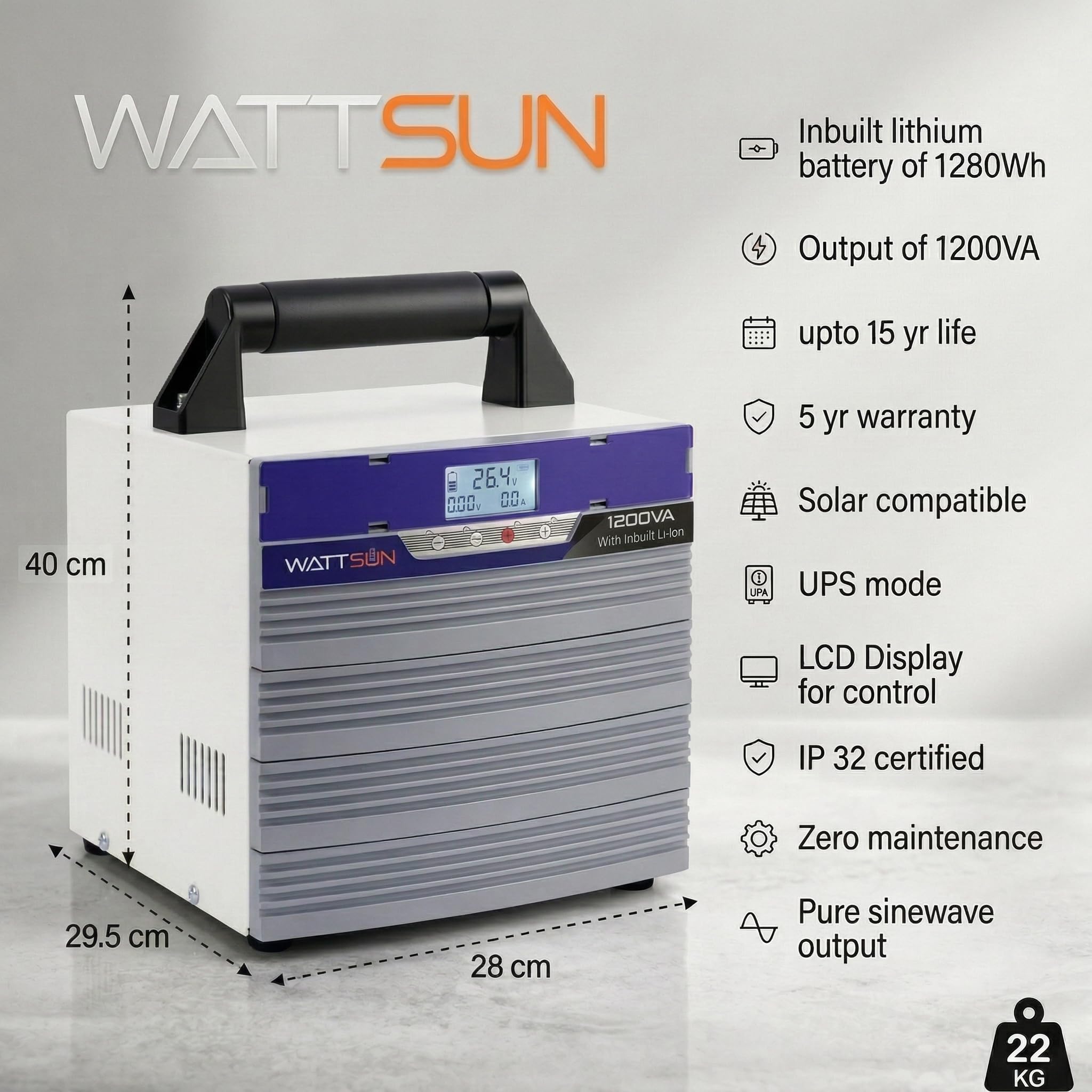

1200VA Output Inverter-UPS with Inbuilt 1280Wh Lithium battery, Model UPS-1200W
This is a Portable multifactional Lithium Battery based UPS / Inverter.This inverter gives AC 230V -1200 VA output.The main advantage of this solar inverter is that, it is a UPS, Hence it can supply Main AC 230V to home appliances & when mainpower fails, the home load automatically shift over to Battery Inverter Power.This is a lightweight Portable Power Inverter & can be used at Household & as well can be carried away anywhere for outdoor/ field power applications. / Outdoor Camping activitiesThis inverter has a big Lithium Power Pack of 12.8V-100 AH, which is largest in its Class & hence have a longer backup period.
The Lithium Battery of this Solar Invertor can be charged by any of the 2 ways :
1) AC 230 V mains (Grid Power) Inbuilt 20A-250Watt fast charger
2) Charging with Solar Panel 200W (Optional)
Apart From above, the Battery Back up Period can be further extended by connecting additional Battery bank of 100Ah at its Expansion Socket.
The Remaining Battery Power can be judged trough its LCD Display.This product has similar application and use like other Brand Like Excide, Apro, Su-KAm, Luminous,Lento, Microtech Etc.
Application
Drone Battery Charging Smartphone Tablet, Laptop Car Air Compressor,Lalten, Mini Fridge, Car Fridge, Led Light, Flood Light, Wifi - Router, VacuumCleaner, Projector, Coffe Maker, Blender, Cordless Drill, Tav Mug, RiceCooker, Stand Fan, Cpap,Go Pro Cmaera, Camera, Electric Pan, Speaker,Electric Blanket, Desktop,Tv, Soldring Iron, Water Pump, Hair Strighter,Electric Kettle, Electric Multi Cooker, Cutter, Bldc Fan, Grinder, Hair Dryer,Egg Boiler, Lithium Battery Charger, Electric Lunch Box, Roster
This Premium Product is the outcome of excellent hardwork of HPM's R&D Engineers. Himalayan Power is a more than 25-year Company that offers complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after sale & services and spare parts at very economical prices.
Product Information

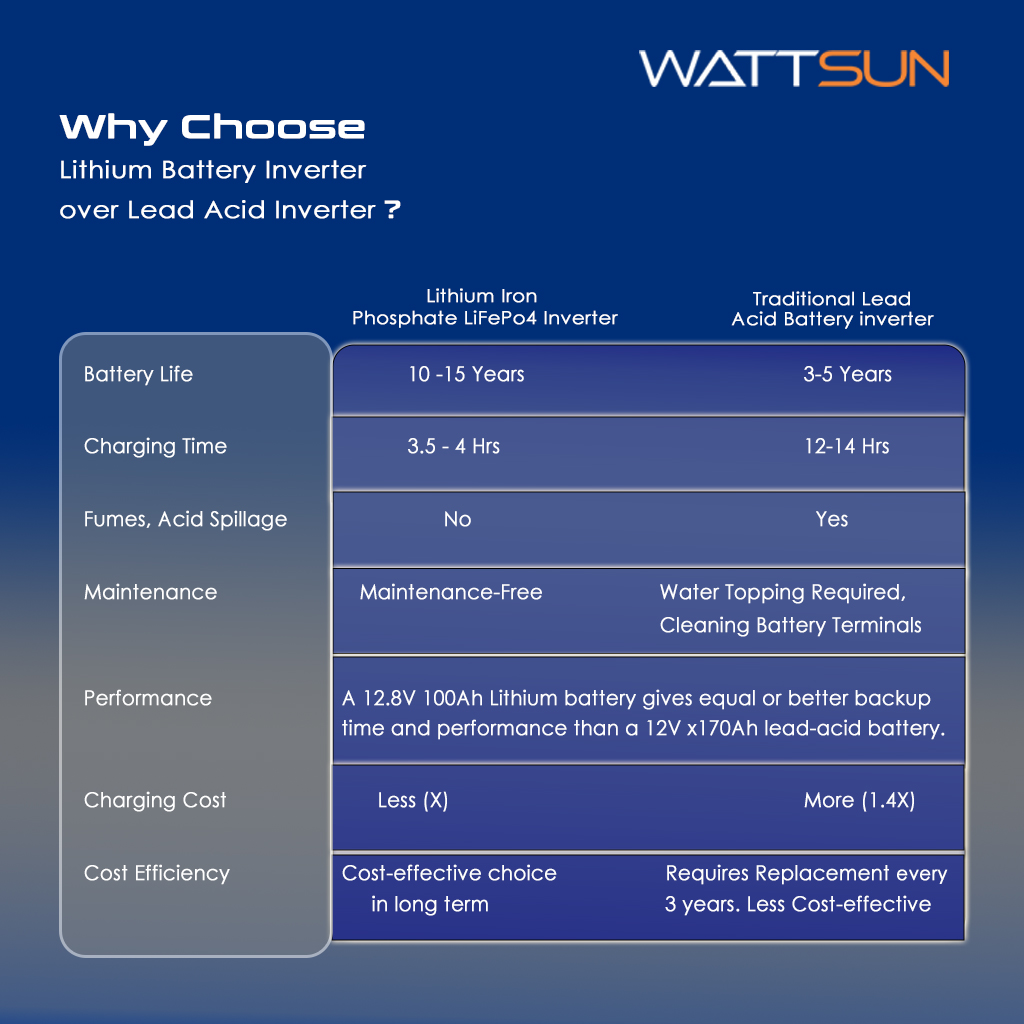

Cell Chemistry: Lithium Iron Phosphate LiFePo4
Cell Type Prismatic: 3.2 V- 100 AH
Battery Voltage: 12.8 V (4S)
Peak Capacity: 12.8V - 100 AH (1280 Wh)
Life Cycles / Battery Life: ≥ 10yr. 3000 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
BMS (Battery Management System) Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
Battery Expansion: Yes, Expandable, can Add 1 Pack 12.8V-100 Ah
Shelf Life: Charge Every 3 - 6 Months
AC 230 Volt Output (Inverter Power Supply)

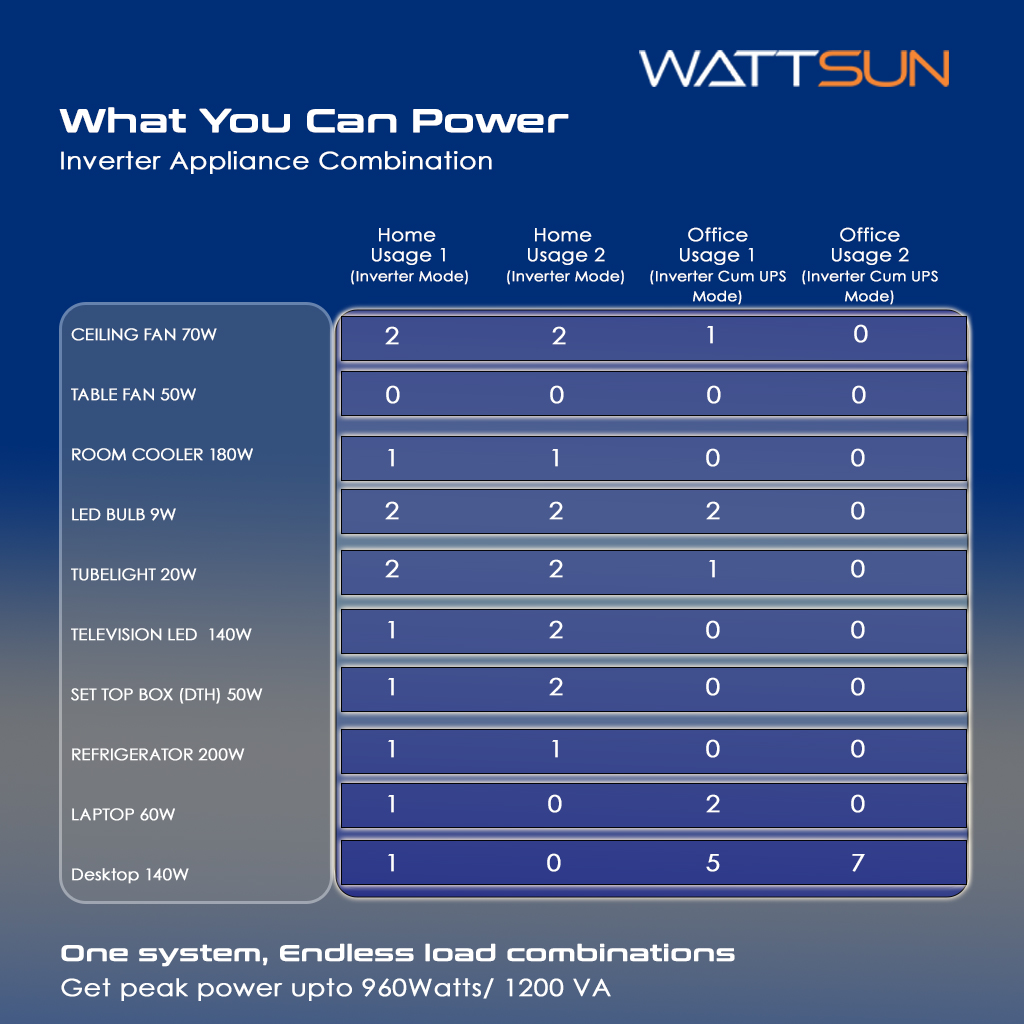

AC Power Output: 1200VA (960Watt)
Voltage & Type: AC - 230 V, 50Hz, Pure Sine Wave
Input Voltage: Inverter Mode: 100V-300V
UPS Mode: 180V-260V
Output Voltage Mains Mode: Same as Input / UPS Mode: 210V±10%
Output Frequency: UPS Mode 50Hz ± 1Hz
Switching: Automatic (from Main to UPS and From UPS to Mains)
UPS Overload: 110%
UPS Short Circuit: 300%
UPS Transfer Time : <15msec
Technology: DSP Controller Based

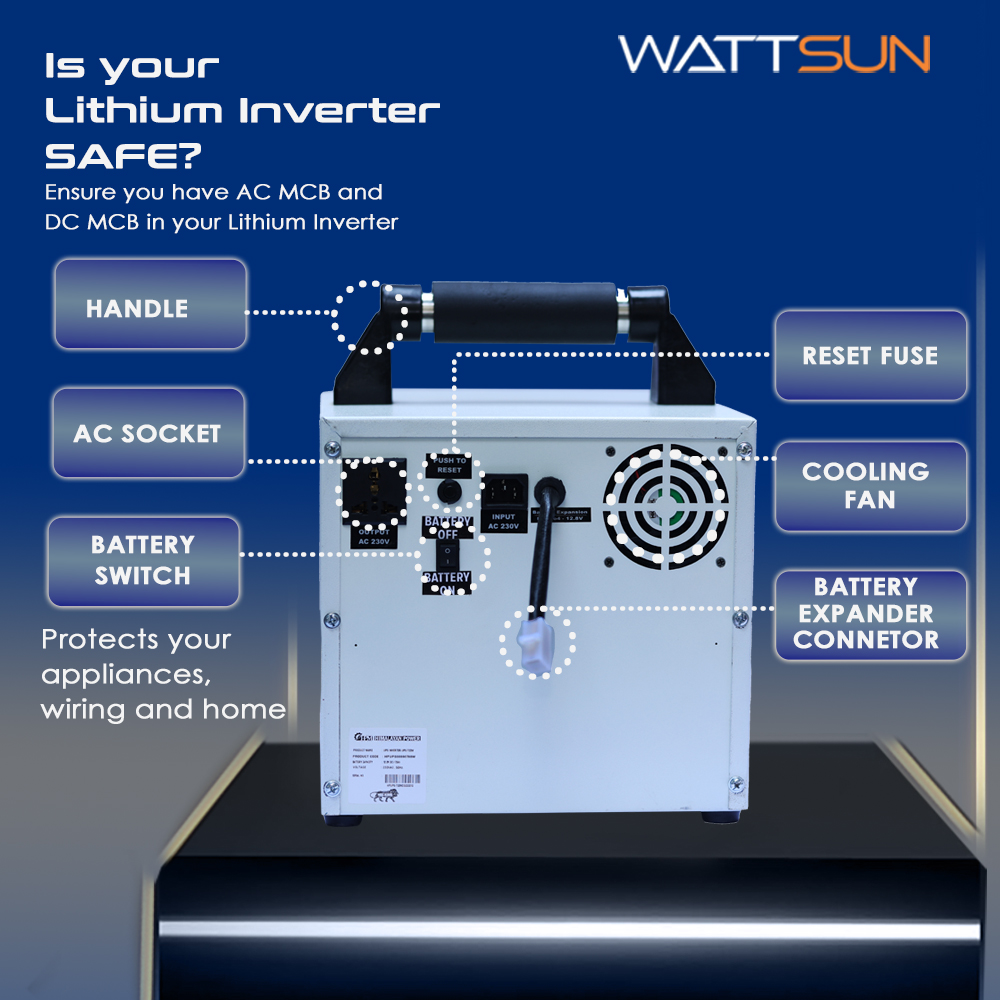

Resettable Switch Breaker for Total Safety of Connected Appliances: Yes
Auto Reset Function During & After Overload Conditions: Yes
THD :< 2% (Full R Load)
PF Power Factor: 0.8
Over Load: 110% < Load <120% @ 1 min, 120% < Load <150% @ 0.5 S
Power Less (No Load & Turned- Off) :< 10W
AC Output Back time @ 50% of rated load(VA): ≤ 3.5 Hours
Max. Effecient (>70% Load): < 85%
Output Socket : Indian Version AC Socket x 2 (US/UK/EU/AU Socket)
Panel Diplay / Indicators
Battery Level / Status: Indicators LCD Display
Function Indicators: Fault / AC Output / Mains Charging /Modes/ Load Percentage,Battery Voltage, Mains Voltage, Temperature, UPS / Inverter Mode
DC - Charging Input Power (2 Way of Recharge)
AC Wall Charger (Charging from Grid Power) (AC input 120V to 275V): Inbuilt Charging 20 Amps 5-6 Hours
Solar Panel PV Charge: 2 Parallel (18V/ 8.3 Amps 150W) Max 300 W Charging Time 7 - 8 Hours
Heat Dissipation: Air Cooling (Fan), Aluminum Housing
IP Rate: IP 32 Protected from Water Spray < 15˚From Vertical
Working Condition
Charge Temperature: 0˚C ~ 45˚C
Operating Usage Temp: -10˚C ~ 45˚C
Operation Storage Humidity: 5% ~ 90%
Dimensions (LxWxH):348mm L-300mm B-280mm
Net Weight: 20 kg
Package Contents
1* 1200 Watt Portable Lithium Power Inverter UPS-1200W
1* 3 pin Mains AC Cord
1* User Manual
Solar Panel 2 Parallel (18V/ 8.3 Amps 150W) Max 300 W (Optional)
